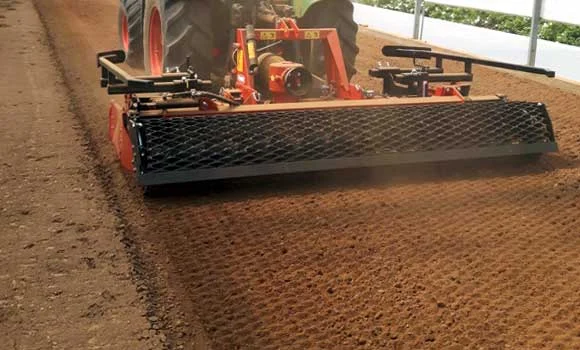

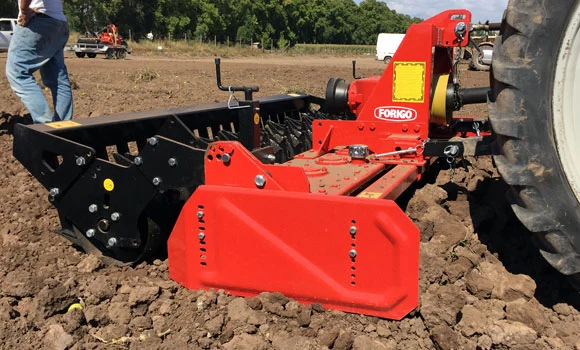

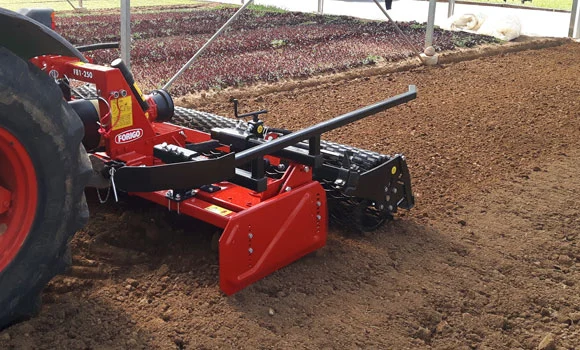

Power harrows F81
Basic machine
- Universal 3 point linkage Cat. 1 & 1s
- Single speed gearbox 540 rpm PTO
- Rear PTO connection (From mod. 130 to 210)
- Rotor 290 rpm
- Monobloc tine-holder shaft hot-forged
- 2x Tines per rotor
- Special Tine system bi-directional "ZEUS" ideal for a low power absorption
- Cylindrical anti-flood tine-holder shaft
- Adjustable side plates
- Working depth adjustable by crank handles
- Safety front bar
- Cardan shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke)
Variants width
| Model | Working width | Total width | Teeth | Cage roller weight | Packer roller weight | ||
|---|---|---|---|---|---|---|---|
| cm | inch | cm | inch | n. | kg | kg | |
| F81 - 100 | 98 | 39 | 103 | 41 | 8 | 300 | 370 |
| F61 - 110 | 108 | 43 | 113 | 44 | 10 | 265 | 335 |
| F81 - 150 | 148 | 58 | 153 | 60 | 12 | 400 | 500 |
| F81 - 180 | 178 | 70 | 183 | 72 | 14 | 470 | 620 |
| F81 - 200 | 198 | 78 | 203 | 80 | 16 | 500 | 690 |
| F81 - 230 | 228 | 90 | 233 | 92 | 18 | 550 | 760 |
| F81 - 250 | 248 | 98 | 253 | 100 | 20 | 590 | 790 |
