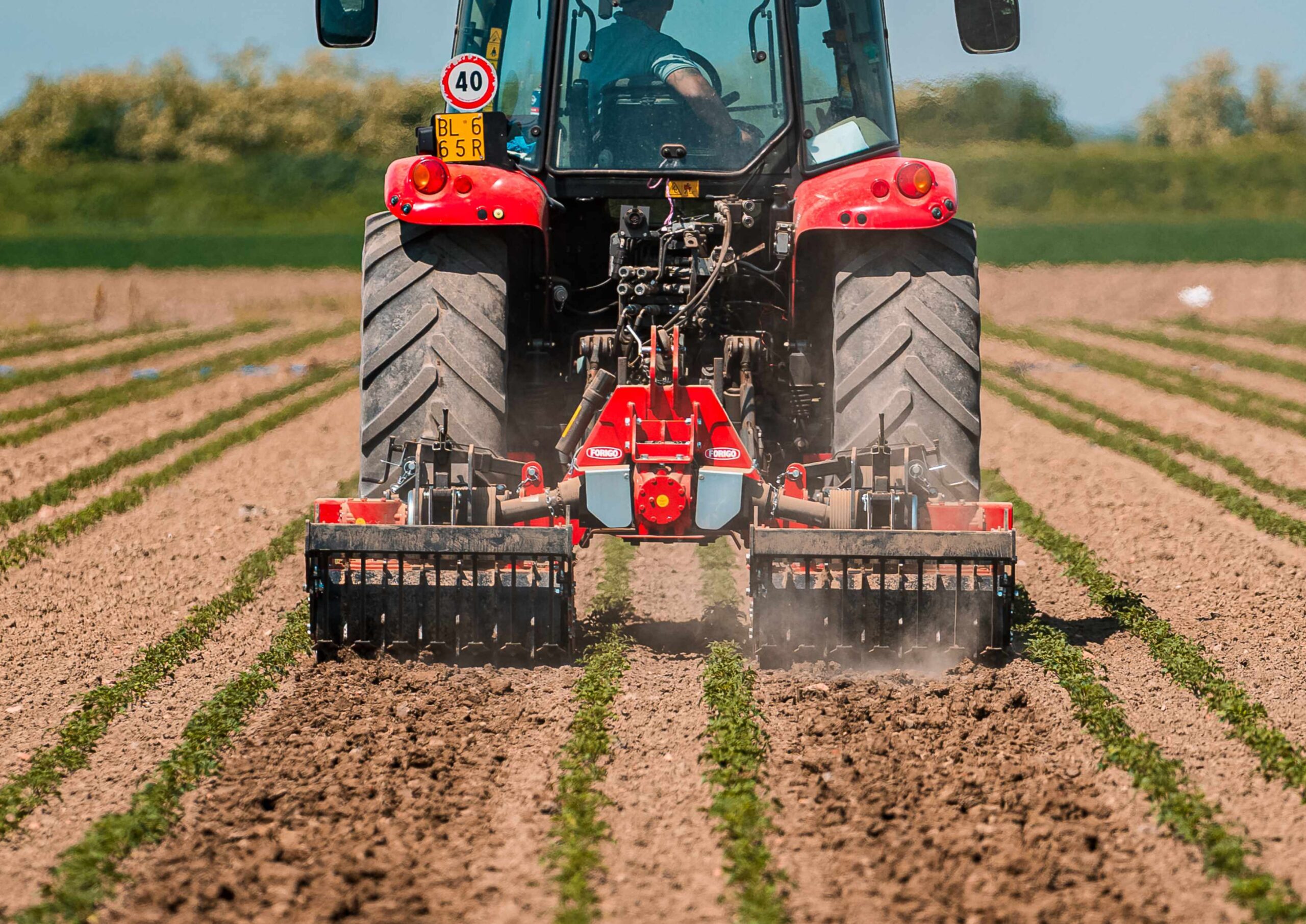

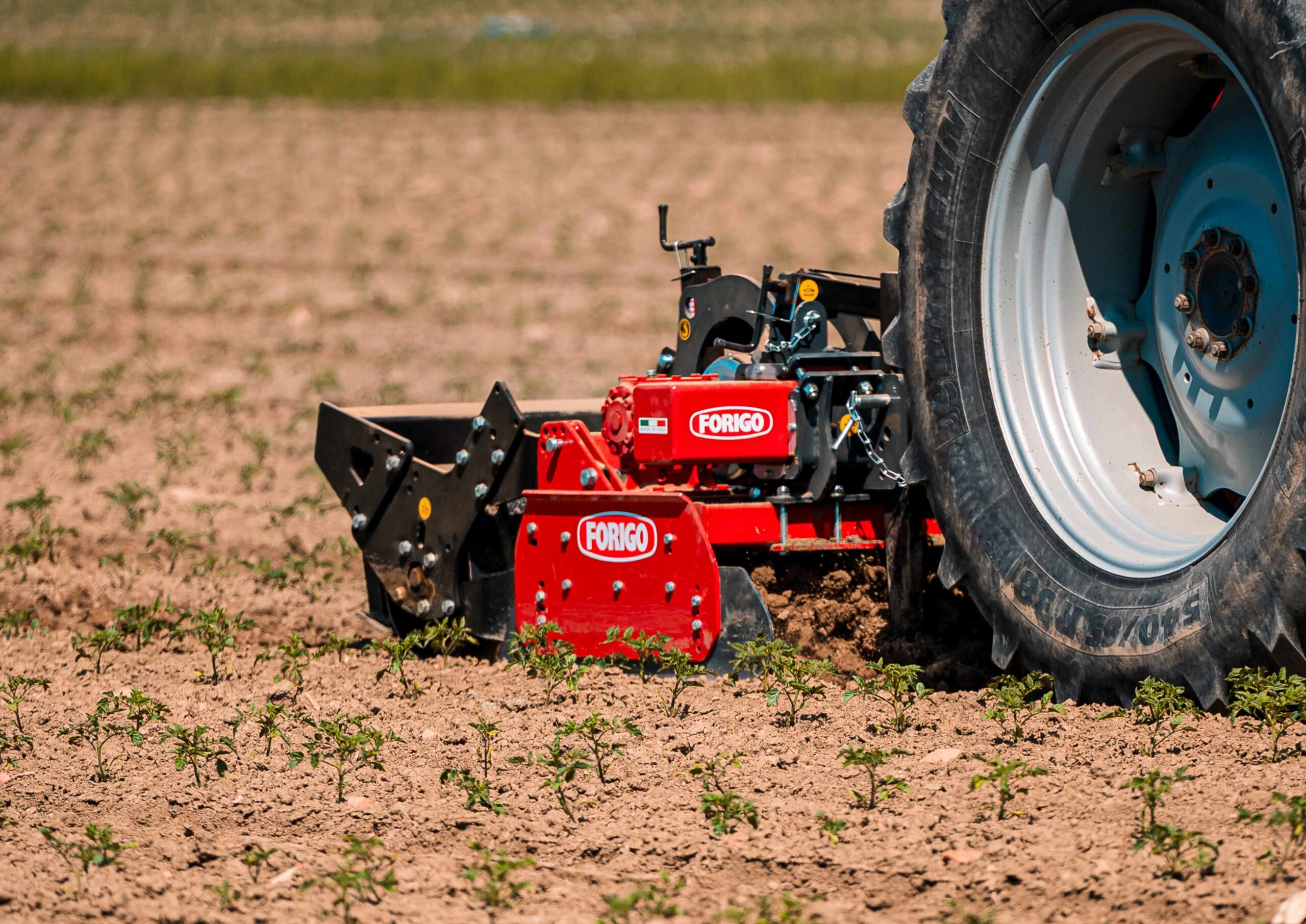

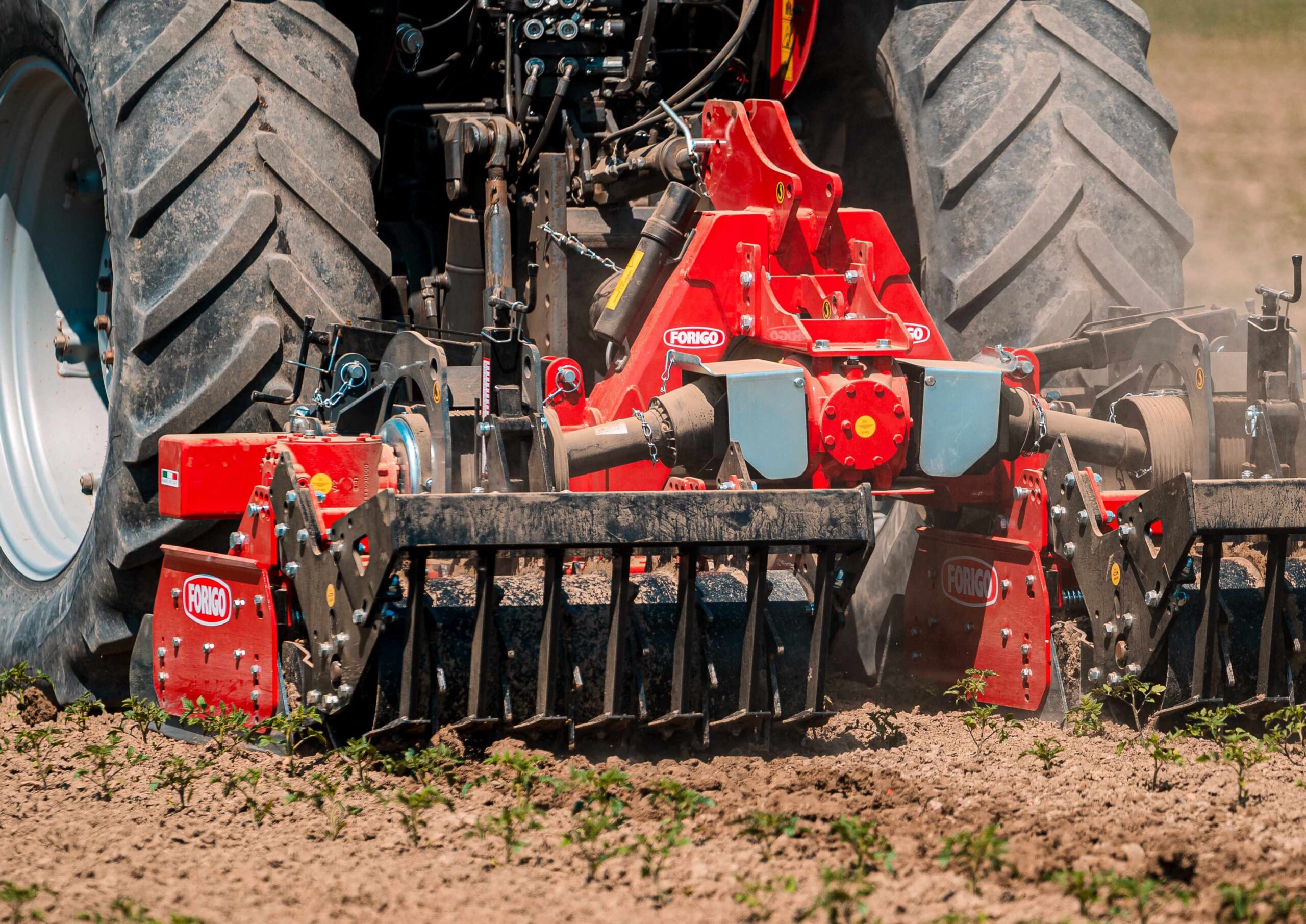

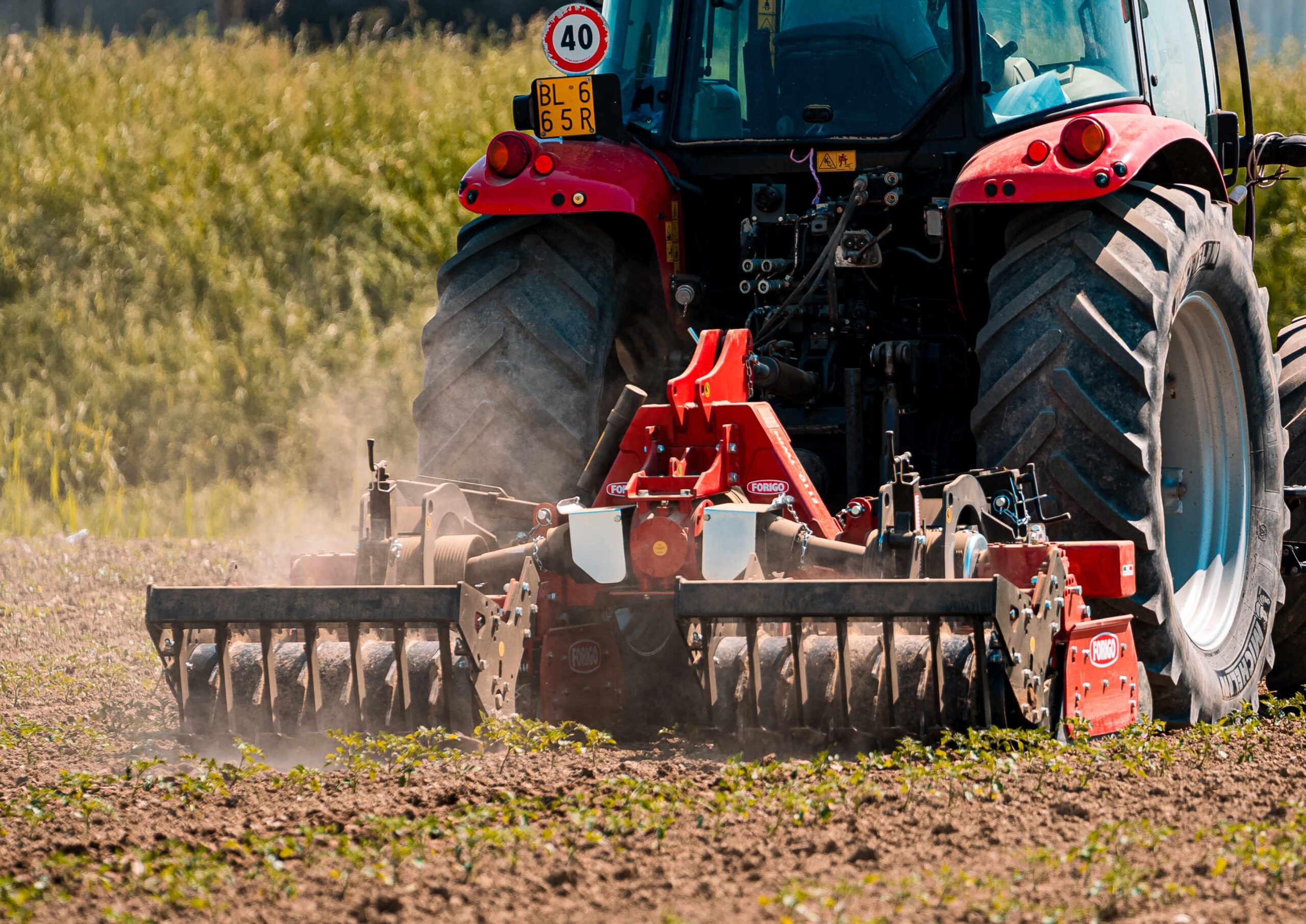

Power harrows F110TW
HP 60 - 120 • KW 45 - 89
cm 25 • inch 10
Basic machine
- Universal 3-point linkage Cat. 2
- Single speed gearbox 540 rpm PTO
- Stone guards mounted on origin
- Monobloc tine-holder shaft hot-forged with hexagonal sockets for screws
- Special Tine system bi-directional “ZEUS” ideal for a low power absorption
- Rear levelling clod bar PARABLOC adjustable by crank handles, mounted on the roller
- Adjustable side plates on springs
- Working depth adjustable by lateral pins on roller brackets
- Safety front bar
- Inter-row adjustable by crank handle
- Central cardan shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke)
- Selection of the pair of lateral cardan shafts compulsory
Variants width
| Model | Working width (A) |
Inter-row width min-max (I) |
Inside inter-row distance min-max (B) |
Excursion distance min-max (C) |
Tines | Weight (without roller and anchors) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| cm | inch | cm | inch | cm | inch | cm | inch | n. | kg | lbs | |
| F110TW 2+2 | 63 | 25 | 135-180 | 53-71 | 72-117 | 28-46 | 200-245 | 79-96 | 4+4 | 890 | 1962 |
| F110TW 3+3 | 86 | 34 | 140-180 | 55-71 | 54-94 | 21-37 | 230-270 | 91-106 | 6+6 | 960 | 2116 |
| F110TW 4+4 | 110 | 43 | 150-180 | 59-71 | 40-70 | 16-28 | 265-295 | 104-116 | 8+8 | 1020 | 2249 |
| F110TW 5+5 | 135 | 53 | 310-370 | 122-146 | 175-235 | 63-93 | 450-510 | 177-201 | 10+10 | 1450 | 3197 |
