Modula One - Electric seeding, taylor made
Compact, precise and fully customizable, Modula One is the electric seeder designed to adapt to every type of vegetableand cultivation need. Its modular design and electronic seeding system ensure versatility, efficiency and maximum precision under all working conditions.
- Seeding accuracy
- Versatility of use
- Technologically advanced
100% electric
Eliminates mechanical transmissions reducing wear and maintenance.
Integrated motor
It allows precise seeding without density or distance limits.
Flexibility and speed
Easy to set up and assemble.
High accessibility
Quick and easy adjustments.
Fast Lock System
Intuitive and fast opening system.
Optimized seed flow “Vibration system”
Reduces the risk of breakage and improves sliding.

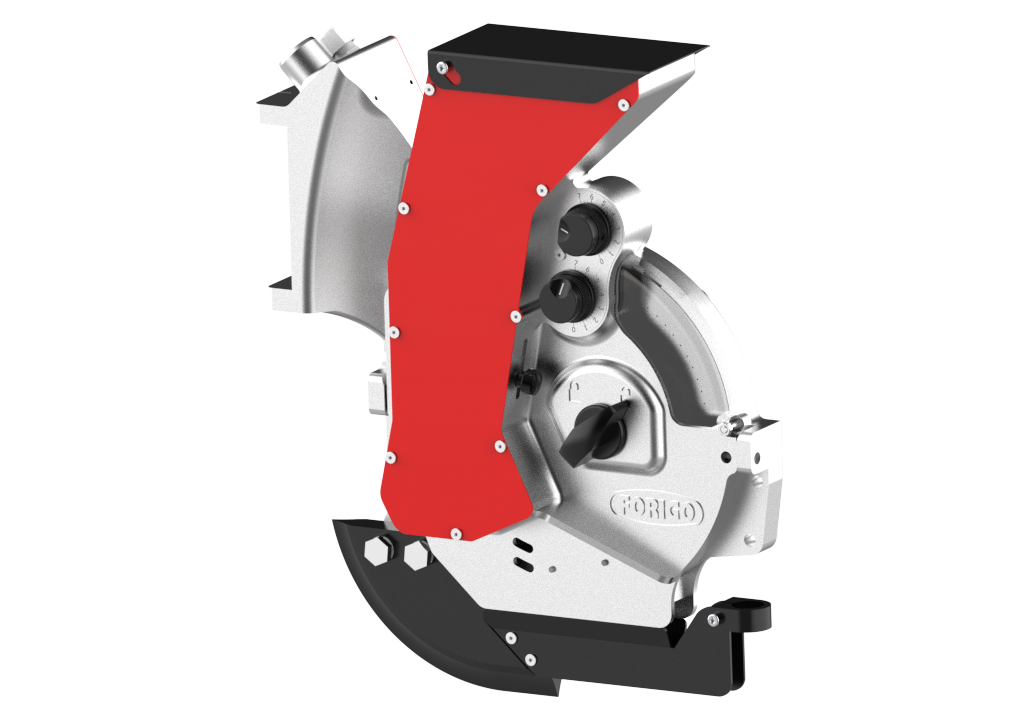

Seeding elements
Parallel link for precise ground following; Springs on parallelogram for element’s loading variation; Front and rear wheel Ø250 mm with balance movement; Wheel reversible scraper mounted on springs.
Serie SFJ
Mechanical seeding depth regulation by crank handle; Seed covering plate with tilting and pressure regulation; AIR DRIVE seeding distributor.
cm
inch
Models
cm
inch
Minimum seeding spacing
Minimum wheel width
SFJ11
11
6
SFJ14
14
9
SFJ19
19
14
Vegetables
Serie SF
Mechanical seeding depth regulation by crank handle; Seed covering plate with tilting and pressure regulation; Parallelogram locking system for transport; AIR DRIVE seeding distributor.
cm
inch
Models
cm
inch
Minimum seeding spacing
Minimum wheel width
SF14
14
9
SF17
17
12
SF19
19
14
SF22
22
17
Vegetables
Serie Twin
Mechanical seeding depth regulation by crank handle; Seed covering plate with tilting and pressure regulation; Parallelogram locking system for transport; Side adjustable DOUBLE AIR DRIVE seeding distributor.
cm
inch
Models
cm
inch
Minimum seeding spacing
Minimum wheel width
SF28 TWIN
28
17
SF33 TWIN
33
20
Vegetables
Serie Tandem
Mechanical seeding depth regulation by 2 crank handles; Seed covering plate with tilting and pressure regulation; Parallelogram locking system for transport; Side adjustable DOUBLE AIR DRIVE seeding distributor.
cm
inch
Models
cm
inch
Minimum seeding spacing
Minimum wheel width
SF24 TANDEM
24
17
SF28 TANDEM
28
17
SF33 TANDEM
33
20
Vegetables
Serie Trio
Mechanical seeding depth regulation by 2 crank handles; Seed covering plate with tilting and pressure regulation; Parallelogram locking system for transport; Side adjustable TRIPLE AIR DRIVE seeding distributor.
cm
inch
Models
cm
inch
Minimum seeding spacing
Minimum wheel width
SF28 TRIO
28
17
SF33 TRIO
33
20
Vegetables
Display Quantix Technology:
the digital heart from your Forigo machines.
The Modula One seeder is totally electronically managed by a centralized system, it is equipped with a display that allows monitoring and programming of the system directly from the driver’s seat.The elements communicate with each other through a CANBUS communication protocol this allows total control and parameterization through the display on the side of the operator.
Product applications
In this gallery, you can explore its construction details, the versatility of the seeding units, and the technical solutions that ensure precision, efficiency, and easy adjustments.
