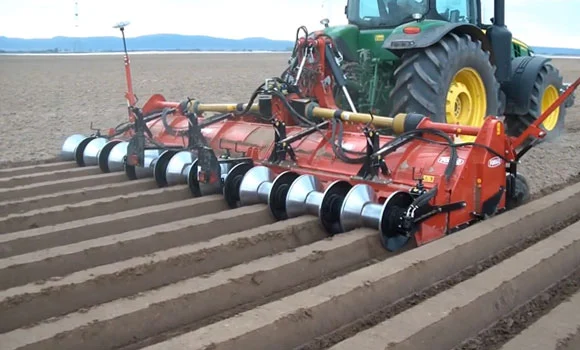

Ridgers and bed formers DP5
HP 200-350 • KW 148-258
cm 32 • inch 13
Basic machine
- Universal 3-point linkage Cat. 2 & 3
- Swinging arms tractor coupling
- Single speed gearbox 1000 rpm PTO
- Lateral transmissions driven by chain in oil bath
- Automatic spring-loaded chain tensioner
- Non-driven side inner transmissions in oil bath
- Front dual metal face seals in oil bath on rotors
- Front tilling rotor Ø750 mm on choice (see accessories section)
- Opening rear doors for inspection
- Lateral soil retaining plates
- Hydraulic system for opening and folding
- Hydraulic locking system for transport position
- Mechanical working depth regulation by crank handle
- Rear lights bar
- Lateral cardan shafts with automatic cam clutch SC type
- Central standard cardan shaft (1”3/8 Z=6 tractor side yoke)
Variants width
| Model | Working width | Weight | ||
|---|---|---|---|---|
| cm | inch | kg | lbs | |
| DP5 - 400 | 400 | 157 | 2990 | 6592 |
| DP5 - 450 (6x75) | 455 | 179 | 3170 | 6989 |
| DP5 - 480 (6x80) | 485 | 191 | 3300 | 7275 |
| DP5 - 500 | 500 | 197 | 3465 | 7639 |
| DP5 - 540 (6x90) | 545 | 215 | 3615 | 7970 |
| DP5 - 600 | 600 | 236 | 3800 | 8378 |
