Seed drill modula Modula One
MODULA One è …
Front headstock
- Universal 3-point linkage Cat. 2;
- Box section bar for seeding elements & accessories fixing;
- Pair of lateral supporting wheels adjustable in height and width;
- Max PTO 540 rpm to activate the turbine;
- Turbine to generate air suction and pressure;
- Cardan shaft 1”3/8 with overrun clutch;
- Vacuum gauge 0-100 mbar scale;
- Valves for air suction and pressure managing;
- Main electric control box for seeding elements connection;
- Sensor for speed detection;
- Display for machinery managing and programming;
- Connecting cable from the display to the machine;
- Cables and pliers for tractor’s 12VDC battery connection;
- Machinery on/off button;
- Stop seeding end-field sensor;
- Stand feet;
Varianti larghezza
| Modello | Interasse ruote | Peso | ||
|---|---|---|---|---|
| cm | inch | kg | lbs | |
| MOD ONE - 230 | 120 - 220 | 47-87 | 360 | 794 |
| MOD ONE - 300 | a richiesta | |||
| MOD ONE - 400 | a richiesta | |||
AIR DRIVE distributor included in every seeding element
- Centesimal tolerances aluminum body;
- Exclusive fast opening / closing system;
- Incorporated electric engine;
- Disc support on bearing;
- Rear PTFE disc gasket;
- Front dampened PTFE disc gasket;
- Inner adjustable plate for seed flow regulation;
- Seed selector with micrometric regulation;
- Counter seed selector with micrometric regulation;
- Interchangeable elements in contact with the disc on springs;
- Inner pressurised air pipe for disc cleaning;
- Exclusive seed shaking system by vibrations;
- 1.5 Lt hopper;
- Upper hopper closure;
- External transparent disc protection;
- Lower interchangeable coulter;
Pneumatic seeding element SFJ19
- Fixing system with parallelogram movement;
- Springs on parallelogram for element’s loading variation;
- Front and rear wheel Ø 250mm with balance movement;
- Wheel reversible scraper mounted on springs;
- Mechanical seeding depth regulation by crank handle;
- Seed covering plate with tilting and pressure regulation;
- AIR DRIVE seeding distributor;
Varianti larghezza
| Modello | Interasse minimo elementi di semina (C) | |
|---|---|---|
| cm | inch | |
| SFJ19 | 18 | 7.1 |

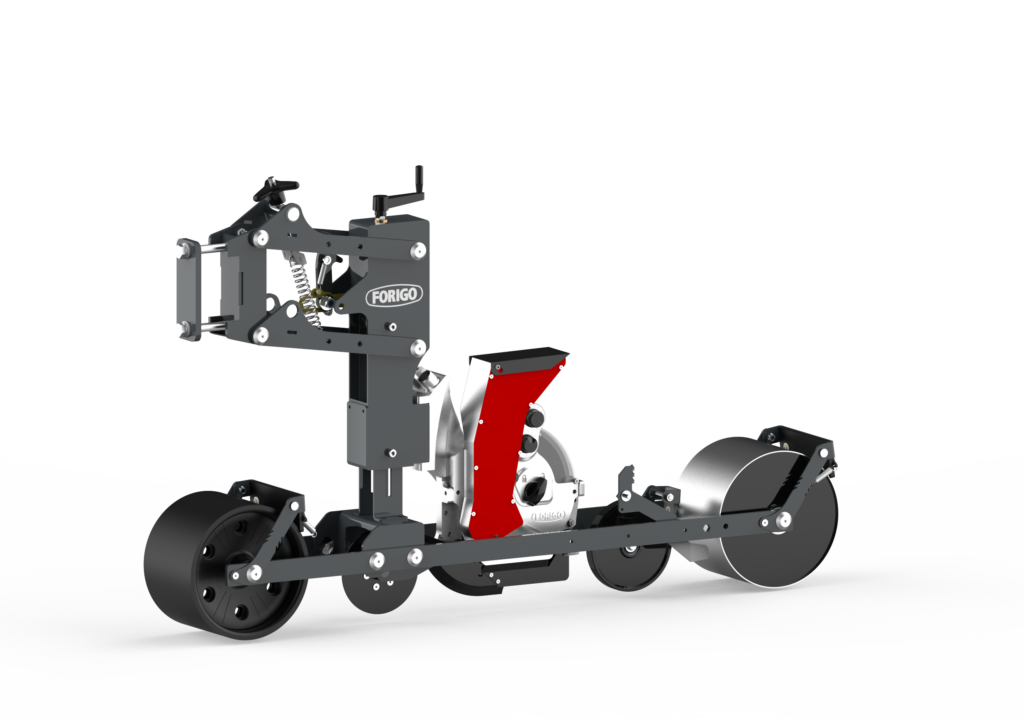

Pneumatic precision seeding element SF
- Fixing system with parallelogram movement;
- Springs on parallelogram for element’s loading variation;
- Front and rear wheel Ø 250mm with balance movement;
- Wheel reversible scraper mounted on springs;
- Mechanical seeding depth regulation by crank handle;
- Seed covering plate with tilting and pressure regulation;
- Parallelogram locking system for transport;
- AIR DRIVE seeding distributor;
Varianti larghezza
| Modello | larghezza ruota (A) | Larghezza totale elemento (B) | Interasse minimo elementi di semina (C) | MONOFILA | Distanze ammesse fra 2 vomeri Doppia fila (E) | Distanze ammesse fra 3 vomeri Tripla fila (F) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| cm | inch | cm | inch | cm | inch | cm | inch | cm | inch | ||
| SF14 | 9 | 3.5 | 13 | 5.1 | 14 | 5.5 | ● | - | - | - | - |
| SF17 | 12 | 4.7 | 16 | 6.3 | 17 | 6.7 | ● | 6 - 7,5 | 2,3 - 3 | 3 - 3,7 | 1 - 1,5 |
| SF19 | 14 | 5.5 | 18 | 7.1 | 19 | 7.5 | ● | 6 - 7,5 - 10 | 2,3 - 3 - 4 | 3 - 3,7 - 5 | 1 - 1,5 - 2 |
| SF22 | 17 | 6.7 | 21 | 8.3 | 22 | 8.7 | ● | 6 - 7,5 - 10 - 15 | 2,3 -3 - 4 - 6 | 3 - 3,7 - 5 - 7,5 | 1 - 1,5 - 2 - 3 |
Pneumatic precision seeding element
SF TWIN
- Fixing system with parallelogram movement;
- Springs on parallelogram for element’s loading variation;
- Front and rear wheel Ø 250mm with balance movement;
- Wheel reversible scraper mounted on springs;
- Mechanical seeding depth regulation by crank handle;
- Seed covering plate with tilting and pressure regulation;
- Parallelogram locking system for transport;
- Side adjustable DOUBLE AIR DRIVE seeding distributor;
Varianti larghezza
| Modello | Interasse minimo elementi di semina (C) | Distanza distributori di semina (D) | ||
|---|---|---|---|---|
| cm | inch | cm | inch | |
| SF28 TWIN | 28 | 11 | min 9 - max 12 | min 1,8 - max 3,3 |
| SF33 TWIN | 33 | 13 | min 9 - max 17 | min 3,5 - max 6,7 |
Pneumatic precision seeding element
SF TANDEM
- Fixing system with parallelogram movement;
- Springs on parallelogram for element’s loading variation;
- Front and rear wheel Ø 250mm with balance movement;
- Wheel reversible scraper mounted on springs;
- Mechanical seeding depth regulation by 2 crank handles;
- Seed covering plate with tilting and pressure regulation;
- Parallelogram locking system for transport;
- Side adjustable DOUBLE AIR DRIVE seeding distributor;
Varianti larghezza
| Modello | Interasse minimo elementi di semina (C) | Distanza distributori di semina (D) | ||
|---|---|---|---|---|
| cm | inch | cm | inch | |
| SF24 TANDEM | 24 | 9.4 | min 1 - max 8 | min 0,4 - max 3,1 |
| SF28 TANDEM | 28 | 11 | min 1 - max 12 | min 0,4 - max 4,7 |
| SF33 TANDEM | 33 | 13 | min 1 - max 17 | min 0,4 - max 6,7 |
Pneumatic precision seeding element
SF TRIO
- Fixing system with parallelogram movement;
- Springs on parallelogram for element’s loading variation;
- Front and rear wheel Ø 250mm with balance movement;
- Wheel reversible scraper mounted on springs;
- Mechanical seeding depth regulation by 2 crank handles;
- Seed covering plate with tilting and pressure regulation;
- Parallelogram locking system for transport;
- Side adjustable TRIPLE AIR DRIVE seeding distributor;
Varianti larghezza
| Modello | Interasse minimo elementi di semina (C) | Distanza distributori di semina (D) | ||
|---|---|---|---|---|
| cm | inch | cm | inch | |
| SF33 TRIO | 33 | 13 | min 4,5 - max 8,5 | min 1,8 - max 3,3 |
